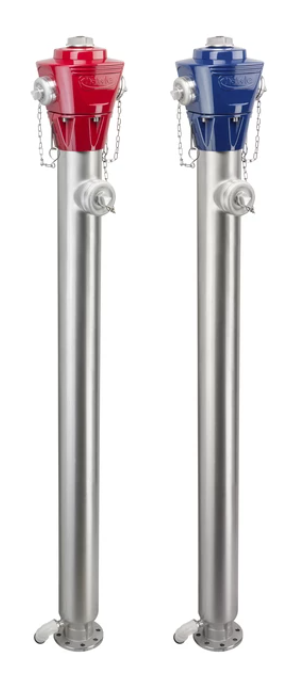

Brunahani Hawle DN100 3 Stúta Ryðfrír

Brunahani Hawle DN100 3 Stúta Ryðfrír Blár
C100-RD1, 50-BBA
PN16, ÖNORM F 2010, EN 14384, EN 1074-6


• Modern design
• Made entirely of corrosion free materials
• O-rings embedded in non-corrosive material
• Minimal torque for operation (MOT < 80 Nm, mST > 250 Nm)
• Noticeable stop at the limits when opening and closing
• Hydrant head can be turned completely 360°
• Easy exchange of all inner parts
• Remaining water content according to EN 1074-6
• Automatic drainage system with pressure control, drainage time less than 10 min.
• Opening direction left
• 15 turns to open position
• Connection option for drainage line PE pipe Ø32 or Hawle drainage pipe no. 5067
• Outlets according to other international standards possible
• Several outlets on the stand pipe possible, positions on request
• Resistant against desinfectants acc. to EN 1074-1 Above ground hydrant - break away
• Simple repair of the breakaway areas
• Spare bolts for quick repair of the break away line are contained in the hydrant head
• Safety bar for spindle housing in the area of the break away line
• Hydrant head can be delivered with individual colors
