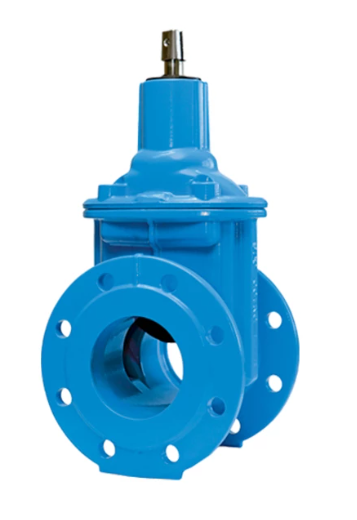

Loki E1+ Hawle DN50 PN16

Loki E1+ Hawle Flangs DN50 PN16
EN 558-1 GR 14
Þyngd: 8,654 kg

Eiginleikar

• Resilient seated gate valve with smooth, straight bore
• Flanges sized in accordance with EN 1092-2, drilled according
  to EN 1092-2 | PN 10 standard; EN 1092-2 | PN 16 for DN 200 Please specify on order - other standards on request
• Suitable for cleaning with a cleaning pig
• Short face-to-face length (EN 558 GR 14)
• Long face-to-face length (EN 558 GR 15)
• DUPLEX stainless steel spindle

Standard version: without handwheel and extension spindle
(only suitable for manual actuation)
Special versions: on request
